HT16 Mighty Pump

High Head Trash (HT) Pumps balance high lift and high volume capabilities

  • Overview
  • Performance

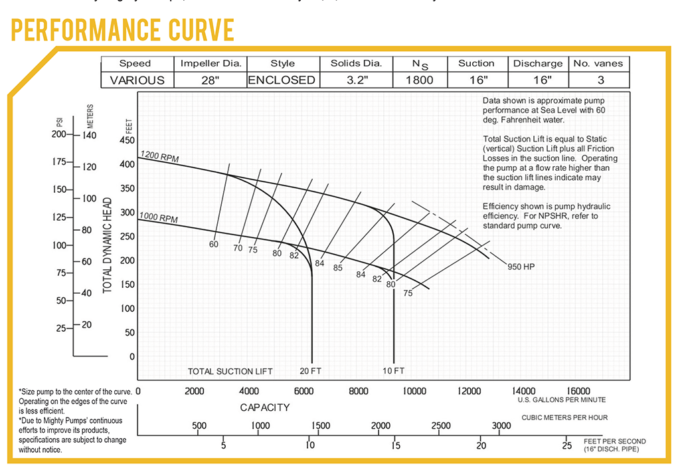

  • Pump Curve
  • Technical Specs
  • Pump Materials
  • Dimensions

PUMP FEATURES

  • High Head Trash (HT) Pumps balance high lift and high volume capabilities
  • Variety of pump applications including sewage, liquids, sludge and liquids with solids up to 3.2 inches (81 mm) in diameter
  • Standard engine CAT C32–950 hp
  • Stressproof™ stainless steel shaft with innovative Cycloseal® (Tungsten Carbide vs. Silicon Carbide) that increases the seal life by up to three times that of a typical mechanical seal
  • Oil bath feeds the mechanical seal with cooler oil for continuous dry running
  • Steel construction skid. Also available with an industrial grade, off-road trailer mount
  • Capable of remote monitoring with live updates that include: pump’s global position, discharge pressure, engine data and maintenance log
  • Automatic Priming System sucks air and liquid at the same time. Primes and re-primes completely unattended
  • Priming system built with in-line ¼ turn isolation valve for flooded suction applications
  • At its Best Efficiency Point this pump is 82% efficient, which reduces energy costs compared to other pumps
  • Heavy duty, massive pump shafts, purposely built for industrial applications
  • Optional Water Level Control
  • Optional, easily removable protective Quiet Container
  • Warranted by Mighty Pumps, Cornell and CAT- 2 year, 2,000 hour warranty

HT16 PERFORMANCE

Maximum Outflow
12,875 US gpm (48,732 L/min)
Maximum Head
410 feet (125 m)
Solids Handling
3.2" (81 mm) Diameter
BEP with 15’ lift
7,000 US gpm @ 335 ft &1200 RPM

HT16 TECHNICAL SPECIFICATIONS

Engine
CAT C32–950 hp Continuous
Pump End
Cornell 12NHG28
Gear Box
Twin Disc MG-5114SC-HD
Mounting
Skid
Fuel Tank Capacity
400 US gallons (1,514 L)
Fuel Consumption (1,800 rpm)
45.7 US gal/hr
Run Time* (1,800 rpm)
9 hrs
Maximum Operating Speed
1,200 rpm
Max Case Pressure
200 psi (1,379 kPa)
Max Fluid Temperature
180°F (82°C)
Suction Inlet Size
16 inches 150 lb Flange
Discharge Outlet Size
16 inches 150 lb Flange
*one tank of fuel

MATERIAL SPECIFICATIONS

Volute
ASTM A536-72 Ductile Iron
Wear Rings
ASTM A48 Cast Iron
Backplate
ASTM A536-72 Ductile Iron
Impeller
ASTM A48 Cast Iron
Frame
ASTM A48 Cast Iron
Shaft
Stress Proof SAE 1144 Steel
Shaft Seal
Tungsten Carbide vs. Silicon Carbide
Engine Bracket
ASTM A48 Cast Iron
Skid
CSA G40.21 44W Steel

GENERAL DIMENSIONS

Height
112 inches (2,845 mm)
Width
81 inches (2,057 mm)
Length
227 inches (5,766 mm)
Weight (Wet)
26,602 lb (12,067 kg)
