DT24 Mighty Pump

  • Overview
  • Performance

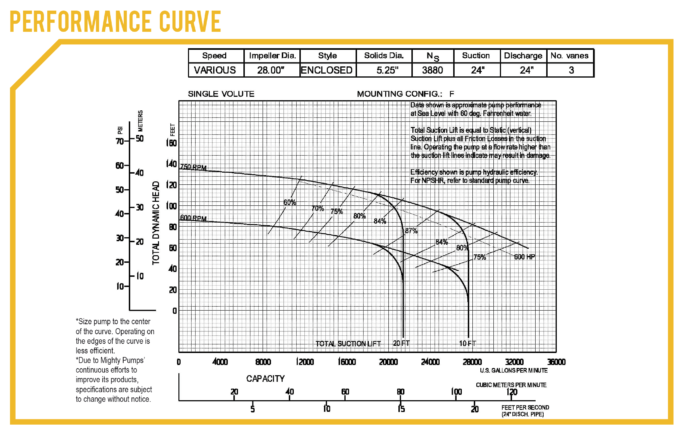

  • Pump Curve
  • Technical Specs
  • Pump Materials
  • Dimensions

PUMP FEATURES

  • Dewatering Trash (DT) Pumps move large volumes of water
  • Variety of pump applications including sewage, liquids, sludge and liquids with solids up to 5.25 inches (133 mm) indiameter
  • Standard engine CAT C18–600 hp
  • Stressproof™ stainless steel shaft with innovative Cycloseal® (Tungsten Carbide vs. Silicon Carbide) that extendsseal life- often triple normal mechanical seals
  • Oil bath feeds the mechanical seal with cooler oil for continuous dry running
  • Industrial strength skid built with integral fuel tank
  • Capable of remote monitoring for live updates that include: pump’s global position, discharge pressure, engine dataand maintenance log
  • Automatic Priming System sucks air and liquid at the same time. Primes and re-primes completely unattended
  • Priming system built with in-line ¼ turn isolation valve for flooded suction applications
  • At its Best Efficiency Point this pump is 87% efficient, which reduces energy costs compared to other pumps
  • Heavy duty, massive pump shafts, purposely built for industrial applications
  • Optional Automatic start/stop feature for water level control
  • Optional, easily removable protective Quiet Container
  • Warranted by MightyPumps™, Cornell and CAT- 2 year, 2,000 hour warranty

DT24 PERFORMANCE

Maximum Outflow
33,400 US gpm (126,433 L/min)
Shutoff Head
136 ft (41 m)
Solids Handling
5.25 inches (133 mm) Diameter
Best EfficiencyBEP with 15’ lift
20,000 US gpm @ 72 ft & 640 rpm

DT24 TECHNICAL SPECIFICATIONS

Engine
CAT C18 600 hp Continuous
Pump End
Cornell 24NNG
Mounting
Industrial Skid
Fuel Tank Capacity
400 US gal (1,514 L)
Fuel Consumption (1800 rpm)
30.9 US gal/hr
Run Time* (1800 rpm)
13 hrs
Maximum Operating Speed
750 rpm
Max Case Pressure
150 psi (1,034 kPa)
Max Fluid Temperature
180°F (82°C)
Suction Inlet Size
24 inches 150 lb Flange
Discharge Outlet Size
24 inches 150 lb Flange
Optional Fuel Tank Capacity
250 US gal (946 L)
Optional Fuel Tank Capacity Run Time*
8 hrs
*one tank of fuel

MATERIAL SPECIFICATIONS

Volute
ASTM A48 Cast Iron
Wear Rings
ASTM A48 Cast Iron
Backplate
ASTM A536-72 Ductile Iron
Impeller
ASTM A48 Cast Iron
Frame
ASTM A48 Cast Iron
Shaft
Stress Proof SAE 1144 Steel
Shaft Seal
Tungsten Carbide vs. Silicon Carbide
Engine Bracket
ASTM A48 Cast Iron

GENERAL DIMENSIONS

Length
112 inches (2,845 mm)
Width
88 inches (2,235 mm)
Height
262 inches (6,655 mm)
Weight
32,300 lbs (14,651 kg)
Optional Fuel Tank Capacity Weight (Wet)
34,359 lbs (15,585 kg)
