CP6 Mighty Pump

At its Best Efficiency Point this pump is 68% efficient, which reduces energy costs compared to other pumps

  • Overview
  • Performance

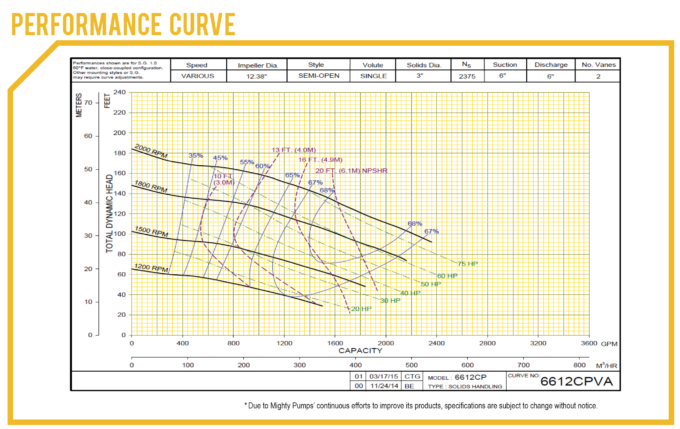

  • Pump Curve
  • Technical Specs
  • Pump Materials
  • Dimensions

PUMP FEATURES

  • The CP Series Pumps move large volumes of water
  • Variety of pump applications including sewage, liquids, sludge and liquids with solids up to 3 inches (76 mm) in diameter
  • Standard engine CAT C4.4 Mechanical-80 hp
  • Stressproof™ stainless steel shaft with innovative Cycloseal® (Silicon Carbide vs. Silicon Carbide) that extends seallife – often triple normal mechanical seals
  • Oil bath feeds the mechanical seal with cooler oil for continuous dry running
  • Steel construction industrial grade trailer with an internal fuel tank; exempt from TDG legislation.Optional highway certified industrial trailer with lights and automatic hydraulic brakes.
  • Warranted by MightyPumps™, Cornell and CAT/Yanmar- 2 year, 2,000 hour warranty
  • Automatic priming system that sucks air and liquid at the same time. Primes and re-primes completely unattended
  • Priming system built with in-line ¼ turn isolation valve for flooded suction applications
  • Automatic start/stop feature for water level control
  • At its Best Efficiency Point this pump is 68% efficient, which reduces energy costs compared to other pumps
  • Heavy duty, massive pump shafts, purpose built for industrial applications
  • Optional remote monitoring with live updates that include: pump’s global position, engine data and maintenance log

CP6 PERFORMANCE

Maximum Outflow
2,360 US gpm (8,934 L/min)
Shutoff Head
184 ft (56 m)
Solids Handling
3 inches (76 mm) Diameter
BEP with 15’ lift
1,150 US gpm @ 154 ft & 2,000 rpm

CP6 TECHNICAL SPECIFICATIONS

Engine
CAT C4.4 80 hp
Pump End
Cornell 6612CP
Mounting
Single Axle, Off Road Trailer
Run Time* (1800 rpm)
9.7 hrs
Fuel Tank Capacity
40 US gal (151 L)
Fuel Consumption (1800 rpm)
4.1 US gal/hr
Maximum Operating Speed
2,000 rpm
Max Case Pressure
150 psi (1,034 kPa)
Max Fluid Temperature
180°F (82°C)
Suction Inlet Size
6 inches 150 lb Flange
Discharge Outlet Size
6 inches 150 lb Flange
*one tank of fuel

MATERIAL SPECIFICATIONS

Volute
Ductile Iron
Wear Rings
Ductile Iron
Backplate
Ductile Iron
Impeller
Ductile Iron
Frame
Ductile Iron
Trailer
CSA G40.21 350W Steel
Shaft
17-4 PH Stainless Steel
Shaft Seal
Silicon Carbide vs. Silicon Carbide
Engine Bracket
Ductile Iron

GENERAL DIMENSIONS

Height
60 inches (1,524 mm)
Width
66 inches (1,676 mm)
Length
82 inches (2,083 mm)
Weight (Wet)
3,250 lbs (1,474 kg)
