SSS75 Mighty Pump

  • Overview
  • Performance

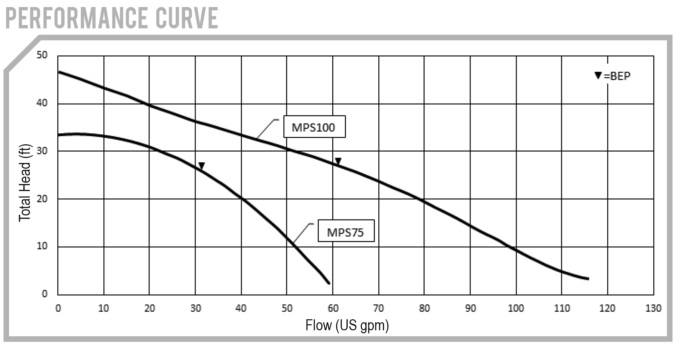

  • Pump Curve
  • Technical Specs
  • Pump Materials
  • Dimensions

PUMP FEATURES

  • Electrical Submersible Stainless Steel (SSS) Dewatering Pumps are designed for a variety of heavy duty dewatering applications
  • High Temperature (HT) Version available and is designed to handle liquids between 140°F and 190°F
  • Hardened Stainless Steel impellers (17-4ph)
  • Double mechanical seals with an outboard lip seal that helps prevent solids from infiltratin primary sealing unit
  • Wear resistant seal housing
  • Solid Silicon Diffuser, prevents wear and resists chemical attack
  • Electrical overload and thermal overload protection
  • Thermally protected with auto-restart
  • For applications where longer pumping cycles are necessary (more than 10 minutes at a time), special heat transfer oil can be added in the High Temperature Version’s motor chamber so as to dissipate internal heat from the motor more rapidly
  • 1 year warranty. Approved by CSA, UL, UL ©
  • Options Include: Automatic version available with separate piggyback float or built in float (single phase), or control panel & float (three phase), float available for High Temperature Version comes with 3” Adapter and Leak Detection Probe in the mechanical seal chamber

SSS75 PERFORMANCE

Maximum Outflow
59 US gpm (223 L/min)
Shutoff Head
33 ft (10 m)
Solids Handling
0.25 inch (6 mm)

SSS75 TECHNICAL SPECIFICATIONS

Model
SSS 75
Phase
3
Horsepower
1
Voltage
230/460 V
Current
1.6/0.8 A
Discharge
2 inches (50.8 mm)
Motor
3,450 RPM

MATERIAL SPECIFICATIONS

Outer Casing
Stainless Steel
Motor Housing Liner
Stainless Steel
Lower Diffuser Material
Stainless Steel
Hardware
Stainless Steel
Cable
PVC Jacket
Mechanical Seal Material
Silicon Carbide vs. Silicon Carbide
Impeller Material
Stainless Steel
Elastomers
Viton®

GENERAL DIMENSIONS

Weight
26 Ibs (12 kg)
Height
13 inches (330 mm)
Diameter
7.13 inches (181 mm)
Cable Length
50 ft (15.24 m)
