MPW 75 Mighty Pump

  • Overview
  • Performance

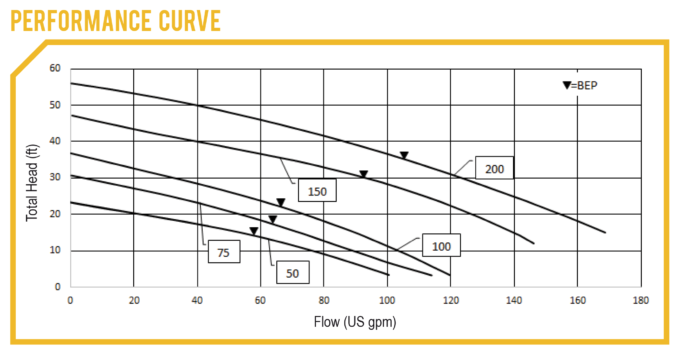

  • Pump Curve
  • Technical Specs
  • Pump Materials
  • Dimensions

PUMP FEATURES

  • Sewage/Wastewater Mighty Pumps™ have a recessed vortex impeller which make them capable of handling 2 inch solids for clog free performance
  • Stainless steel motor housing
  • Burgmann Type Silicon Carbide Double Mechanical Seals assure longest operational life of any seals available
  • Water tight cable gland with epoxy potting to prevent capillary wicking
  • Double shielded, single row, high temperature, long life C3 bearings. Rated for 60,000 hours
  • Electrical overload and thermal overload protection
  • Immersion depth up to 35 ft, and a maximum operating temperature of 104°F
  • Maximum starts per hour: 15
  • 1 year warranty. Approved by CSA, UL, UL ©
  • Optional automatic controls

MPW75 PERFORMANCE

Model
MPW 75
Maximum Outflow
114 US gpm (432 L/min)
Shutoff Head
31 ft (9.5 m)
Solids Handling
2 inches (51 mm)

MPW75 TECHNICAL SPECIFICATIONS

Model
MPW 75
Phase
3
Horsepower
0.75
Voltage
230/460 V
Current
3.2/1.6 A
Discharge
2 inches (51 mm)
RPM
3,450

MATERIAL SPECIFICATIONS

Motor Housing
Stainless Steel
Mechanical Seal Material
Burgmann Silicon Double Mechanical

GENERAL DIMENSIONS

Model
MPW 75
Weight
35 Ibs (16 kg)
A
9.61 inches (244 mm)
A1
3.23 inches (82 mm)
A2
4.65 inches (118 mm)
D
6.46 (164)
D1
3.15 inches (80 mm)
D2
3.31 inches (84 mm)
H
18.98 inches (482 mm)
H1
13.86 inches (352 mm)
H2
5.95 inches (151 mm)
H3
5.55 inches (141 mm)
Cable Length
16 ft (4.88 m)
