SL75 Mighty Pump

  • Overview
  • Performance

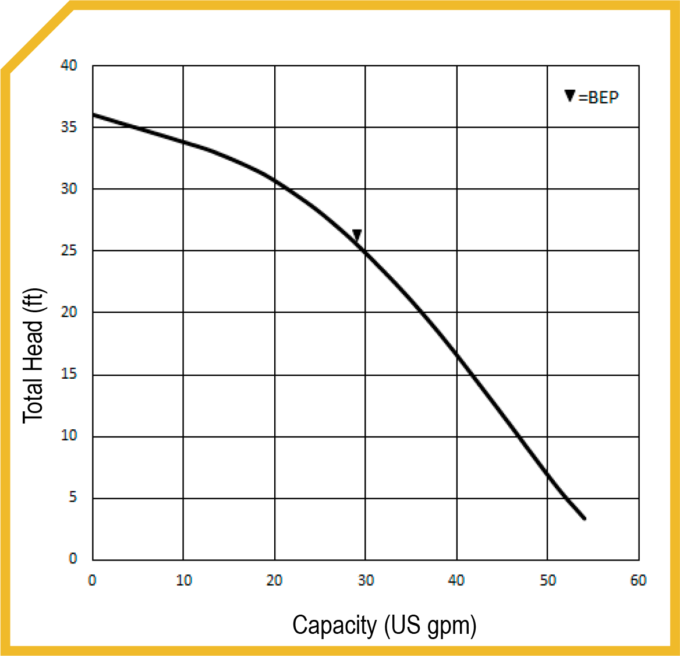

  • Pump Curve
  • Technical Specs
  • Pump Materials
  • Dimensions

PUMP FEATURES

  • Mighty Pumps™’ Low Suction Electric Submersible Pumps are designed for continuous duty with stable operating performance for handling residual water
  • Start-up at and pump-down to a very low liquid level (1/12 inches)
  • Solid Silicone Carbide lower seals and Carbon/Ceramic upper seals
  • Wear resistant seal housing
  • Dynamically balanced impeller, free from vibration for long, quiet operation
  • Circumferential liquid flow system, designed for an optimal cooling effect
  • Electrical Overload Protection
  • 1 year warranty. Approved by CSA, UL, UL ©

SL75 PERFORMANCE

Outlet Size
2 inches
Normal Flow
29 US gpm (110 L/min)
Maximum Flow
54 US gpm (204 L/min)
Normal Head
29 ft (9 m)
Maximum Head
36 ft (11 m)

SL75 TECHNICAL SPECIFICATIONS

Outlet Size
2 inches
Output
3/4 HP
Voltage
115 V
Current
5 A
Discharge
2 inches
Motor
3450 RPM
Insulation Class
F
Max Liquid Temperature
40ºC (104°F)

MATERIAL SPECIFICATIONS

Outer Casing
Stainless Steel
Motor Housing Liner
Stainless Steel
Lower Diffuser Material
Cast Iron
Hardware
Stainless Steel
Cable
50 ft, PVC Jacket
Mechanical Seal Material
Silicon Carbide vs Silicon Carbide
Impeller Material
Cast Iron

GENERAL DIMENSIONS

Weight
34 Ibs (15 kg)
Height
13.2 inches (335 mm)
Diameter
8.1 inches (206 mm)
Cable Length
50 ft
