MP30 HH Mighty Pump

  • Overview
  • Performance

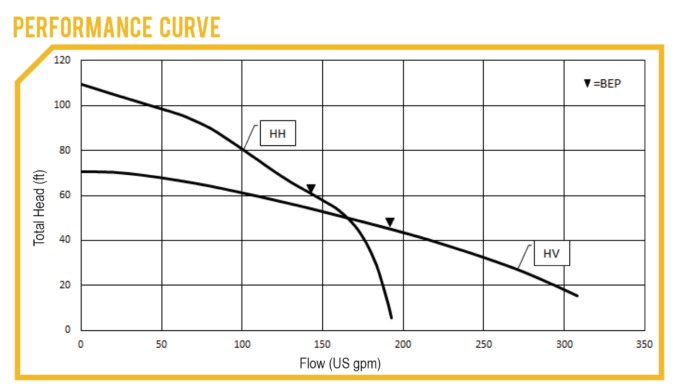

  • Pump Curve
  • Technical Specs
  • Pump Materials
  • Dimensions

PUMP FEATURES

  • Dewatering Mighty Pumps™ are capable of handling High Head (HH) and High Volume (HV) dewatering jobs
  • Hardened Stainless Steel impellers
  • Anti-vibration bellows that restrict the separation of the seal faces
  • Stainless Steel cartridge-type seal with solid Silicone Carbide seal faces
  • Wear resistant stainless steel housing
  • Double O-Ring Seal for mating components around the motor
  • Short circuit, locked rotor and overload protection
  • Pump’s slim line design facilitates installation in tight quarters
  • Electrical overload and thermal overload protection
  • 1 year warranty. Approved by CSA, UL, UL ©
  • Options Include: Automatic controls, hard coating, special coatings for variable pH water conditions, nylon discharge lining and the addition of a Zener Diode to the ground fault

MP30 PERFORMANCE

Model
HH
Maximum Outflow
192 US gpm (727 L/min)
Shutoff Head
109 ft (33 m)
Solids Handling
0.30 inch (8 mm) Diameter

MP30 TECHNICAL SPECIFICATIONS

Model
HH
Phase
3
Impeller Type
Semi-Open Multi Vane
Horsepower
4.6
Voltage
460 V
Current
6.5 A
Discharge
3 inches (76 mm)
Motor
3,450 RPM
Thermal Overload
Two Thermal Switches Incorporated in Stator
Circuit Breaker
Short Circuit, Locked Rotor and Overload Protection

MATERIAL SPECIFICATIONS

Shaft
Stainless Steel
Stator Housing
356-T6 Aluminum
Mechanical Seal
Solid Silicon Carbide Lower Seals, All Stainless Steel Springs
Diffuser
Wear Resistant Nitrile, Rubber Clad, Adjustable for Wear
Seal Housing
Stainless Steel
Discharge Lining
Polypropylene
Strainer
Stainless Steel, slotted openings
Hardware
Stainless Steel
Impeller
Stainless Steel (17-4 ph)

GENERAL DIMENSIONS

Weight
100 Ibs (45 kg)
Height
21 inches (533 mm)
Width
9.75 inches (248 mm)
Diameter
10 inches (254 mm)
Power Cable
50 ft, 12/4 Cable
